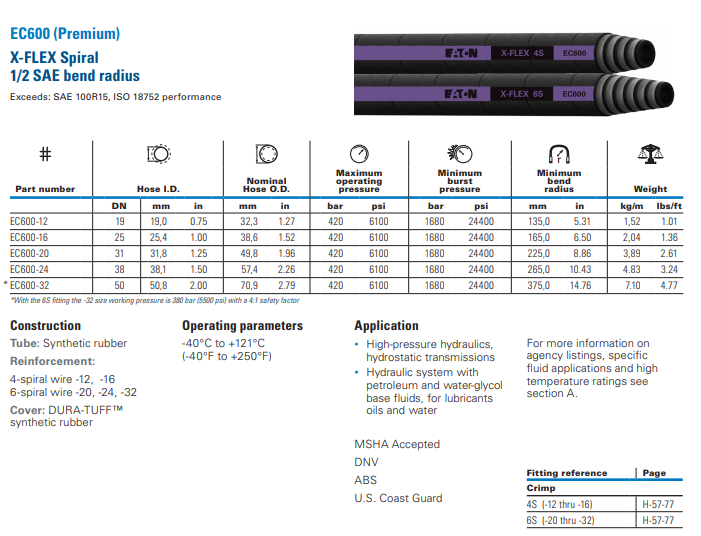

Hose, 6-Sprl, 100R15 DURA-TUFF
Construction
Tube: Synthetic rubber
Reinforcement:
4-spiral wire -12, -16
6-spiral wire -20, -24, -32
Cover: DURA-TUFFTM
synthetic rubber
Operating parameters
-40°C to +121°C
(-40°F to +250°F)
Application
• High-pressure hydraulics,
hydrostatic transmissions
• Hydraulic system with
petroleum and water-glycol
base fluids, for lubricants
oils and water
MSHA Accepted
DNV
ABS
U.S. Coast Guard
For more information on
agency listings, specific
fluid applications and high
temperature ratings see
section A.
r
Part number Hose I.D.
Nominal
Hose O.D.
Maximum
operating
pressure
Minimum
burst
pressure
Minimum
bend
radius Weight
DN mm in mm in bar psi bar psi mm in kg/m lbs/ft
EC600-12 19 19,0 0.75 32,3 1.27 420 6100 1680 24400 135,0 5.31 1,52 1.01
EC600-16 25 25,4 1.00 38,6 1.52 420 6100 1680 24400 165,0 6.50 2,04 1.36
EC600-20 31 31,8 1.25 49,8 1.96 420 6100 1680 24400 225,0 8.86 3,89 2.61
EC600-24 38 38,1 1.50 57,4 2.26 420 6100 1680 24400 265,0 10.43 4.83 3.24
EC600-32 50 50,8 2.00 70,9 2.79 420 6100 1680 24400 375,0 14.76 7.10 4.77
Fitting reference
